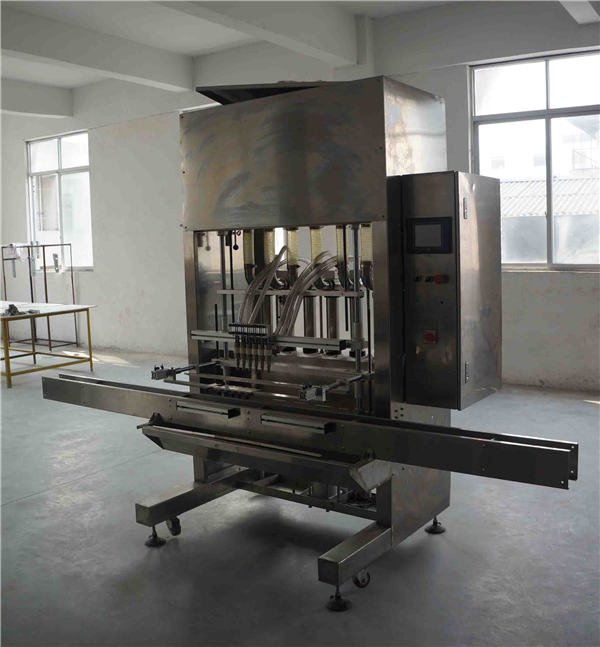

Peiriant Llenwi Potel Olew Hanfodol

Hafan / Peiriannau Llenwi / Peiriant Llenwi Botel / Peiriant Llenwi Potel Olew Hanfodol

Peiriant Llenwi Potel Olew Hanfodol

Nodweddion swyddogaethol

Constant feeding system, dive down optoelectronics, mechanical limit dual protection are the advanced features. It is very safe as the functional area is completely isolated; no bins designed makes cleaning and maintenance easier and also ensures no residual. Quick structural adjustment improves productivity.

1.Adopts Americal METTLER TOLEDO weighing sensor and control meter, ensures that the filling precision of of measurement. Weighing sensor adopt unique ball-to-go drum conveying method, ensure smooth drum-out conveying after filling.

2.Adopt fast and slow speed valve that ensuring filling accuracy and has no effect to speed. It has the dive function , driven by motor, can eliminates the splash and foam. This filling machine can do the auto filling of different materials (with or without foam).

3.Under the filling nozzle is the movable dip collecting cup. After filling, the cup collect the residuel dip to prevent bottle mouth polluting.

4.Weighing control cabinet is of standard RS-483 interface, The system is of number control, adjustment and seeting all can be implemented in touch screen. Gross weight or net weight filling all could be set so the actual filling amount instantly show in touch screen. It is very convinient and intuitive.

5.Empty drum detection, no drum no filling; Anti-collision bottle design, it will auto-reset when bottle orientation or position is not in right place.

6.Individual electric cabinet is of whole seal design, reasonable layout, and convenient overhaul. Main part(PLC, HMI, frequency convertor, and power switch, etc) are all France Schneider’s and other famous brand components, which ensures stable running of the equippment.

7.Material touch part is of SUS304 stainless steel. Filling scale and the sealing of the material touch part are TEFLON.

Paramedr Technoleg


Capasiti:
≤700 Drums per hour (5KG); ≤420 Drums per hour (20KG)
Ystod llenwi:
5-30L
Llenwi Manwl:
±0.2%
Applicable Range:
Min. 140×200×320mm, Max. 260×290×500mm
Ffynhonnell pŵer:
AC380V、50HZ
Pwysedd Aer:
0.6-0.8 MPA
Pwer:
2.2 KW
Pwysau:
tua 1600Kg
Dimensiwn Allanol:
3000×1565×2380mm(L×W×H)
NA.
Enw Dyraniad
Tarddiad
Brand
1
PLC
Ffrainc
Schneider
2
Ehangu Mewnbwn
Ffrainc
Schneider
3
Ehangu Allbwn
Ffrainc
Schneider
4
Sgrin gyffwrdd
Ffrainc
Schneider
5
Frenquency
Ffrainc
Schneider
6
Control Cabinet
Zhuhai
7
Count Sensor
Japan
Opex
8
Proximity Switch
Ffrainc
Schneider
9
Newid Pŵer
Ffrainc
Schneider
10
Switsh pwysau
Japan
SMC
11
Silindr
Taiwan
AIRTAC

Manylion Cyflym


Math: Peiriant Llenwi
Cyflwr: Newydd
Cais: Diod, Cemegol, Nwyddau, Bwyd, Peiriannau a Chaledwedd, Meddygol
Math o Becynnu: Barrel, Poteli, Caniau
Deunydd Pecynnu: Gwydr, Metel, Plastig
Gradd Awtomatig: Awtomatig
Math a yrrir: Trydan
Foltedd: 380V / 50hz
Pwer: 1.5KW
Man Tarddiad: Shanghai, China (Mainland)
Enw Brand: NPACK
Dimension(L*W*H): 3000mmx1565mmx2380mm
Weight: 1600kg
Ardystiad: CE GMP ISO
Gwasanaeth Ôl-werthu a Ddarperir: Peirianwyr ar gael i wasanaethu peiriannau dramor
Filling Capacity: ≤Bottles/hour (5L water as example)
Filling Range: 5-30L
Filling Precision: ±0.2%
Applicable Bottle Range MIN: 140x200x320mm
Applicable Bottle Range MAX: 260x290x500mm
Pwysedd Aer: 0.6-0.8 MPA
PLC / Sgrin gyffwrdd / Gwrthdröydd: Schneider
Silindr / falf Solenoid: FTEC
Deunydd: 316L + 304 Dur gwrthstaen
Keywords: Automatic high viscosity drum filling machine
