Gwneuthurwyr Peiriannau Llenwi Hufen

Product Description:

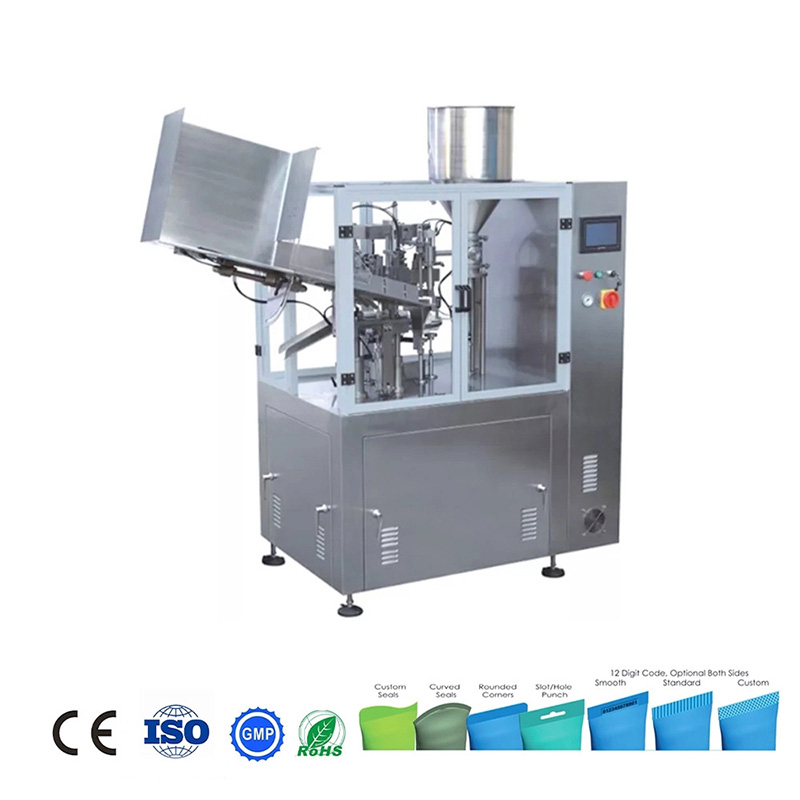

This machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.

Nodweddion:


1. High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By steplees speed adjust, parameter set, out put count, pressure index and failure display.
2. Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3. High precision photoelectron register reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.

ModelGF-400 AGF-400 B
Tube materialMetal tube, ALU tubePlastic tube, Compound tube
Tube diameter10-42 mm10-60 mm
Tube length50-250(customizable)50-250(customizable)
Cyfrol llenwi5-500ml/branch(Adjustable)5-800ml/branch(Adjustable)
Cywirdeb llenwi≤ ± 1%≤ ± 1%
Cyflymder3-10 r/min2.5-7 r/min
Product capacity30-60 Pc/min30-60 Pc/min
Cyflenwad Aer0.55-0.65mpa0.55-0.65mpa
Motor Power2kw(380V/ 220V 50Hz)2kw(380V/ 220V 50Hz)
Heat sealing power3KW3KW
Overall dimension2620×1020×1980 mm2620×1020×1980 mm
Pwysau peiriant1100 kg1100 kg



Gwybodaeth Sylfaenol


Application: Paste
Forming Species: Bottle Forming
Math a yrrir: Trydan
Packaging: Soft Tube
Motor Power: 2kw(380V/ 220V 50Hz)
Overall Dimension: 2620×1020×1980mm
Nod Masnach: NPACK
Tarddiad: Shanghai, China

Gradd Awtomatig: Awtomatig
Type: Filling and Sealing Machine
Forming Function: Filling
Math o Ddeunydd: Gludo
Product Capacity: 30-60 PC/Min
Heat Sealing Power: 3kw
Machine Weight: 1100kg
Manyleb: CE
