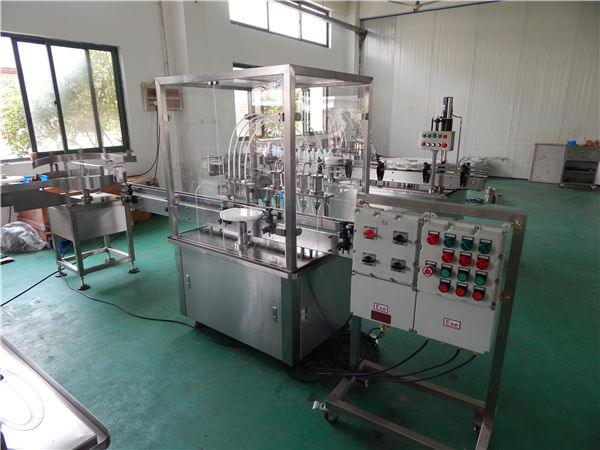

Peiriant Llenwi Hylif Gludedd Uchel Awtomatig

Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is suitable for filling agrochemicals EC, SC and high viscosity material. The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier.

1. It is controlled by the PLC and driven by the servo motor to control the double screw transmission structure which can realize high-precision filling. It uses separate ball screw to link guide pillar and lifting beam. Change-over of the ball screw is very simple; only one man can finish the change and no need to disassemble the lifting beam. The other suppliers install the screw between the lifting beams which makes change-over hard; it requires coordination work of several men.



2. Single-row layout cylinders and fast change-over fixing method which is very easy for cylinder disassembling and the sealing parts cleaning inside. It avoids the pollution to the machine when pull out the cylinder to change the sealing parts. For this structure can really avoid the leakage when changing the sealing part. It improves the safety and protection to the operating staff. This is our company’s exclusive patented technology.



3. Based on five years R&D experience and market feedback, we developed a three-way valve that measures for the pesticide filling. This three-way valve is with simple structure, stable performance, long working time and reliable sealing. No need to worry about the leakage that will never occur even it has been used for a long time already. Three-way valve is our company’s exclusive patented technology.



4. Filling lancers driven by cylinder has diving filling mode, and the variable speed filling matched. This has effectively reduced foaming when filling easy foaming materials and prevented the pollution to the bottle. Meanwhile a liquid holder which is controlled by an individual cylinder is installed under the filling nozzles. It can avoid the pollution to the bottle and cylinder such spare parts after the filling nozzle are OFF. At present, only our company uses the patented technology.



5. Adopt the new explosion-proof filling lancers, solving the booster issue completely.



6. A liquid holder which is controlled by an individual cylinder is installed under the filling nozzles. It can avoid the pollution to the bottle after the filling nozzles are OFF.'

7. The material level sensor is used to check the level position under normal running of the machine, plus with high and low level check and alarm device. A filter is installed in the tank (very easy for disassemble). It can improve the precision of filling and life of the filling valves.

8. We use the latest PTFE sealing parts which can improve the abrasion resistance of the sealing parts (24 months). It solves the problem that piston filling machine cannot be used for SC, EC and high-viscosity.

9. The whole machine use the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimensionΦ100mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.

10. The electronic control system are all France Schneider, compatibility is better. Stability and reliability is ensured. Compared to the system other suppliers used from domestic or Japanese, Schneider is much advanced in Protection grade, stability and reliability, safety grade, and its longevity.

Paramedr Technoleg


Prif Baramedr Technegol (Os oes gennych ddiddordeb, cysylltwch â ni anfonwch y cynllun manwl atoch)
Capasiti:
≤2500 bottles/hr. (1000ml water as medium)
Ystod llenwi:
80-1000ml
Llenwi Manwl:
(200ml) ±1%, (200ml-1000ml) ±0.5%
Diamedr Potel sy'n Gymwys:
 Round Bottle:Φ(40-100)*(80-230)mm

 Flat / Square Bottle (40-100) * (40-100) * (80-230) mm
Ffynhonnell pŵer:
AC380V、50HZ
Pwysedd Aer:
0.6-0.8 MPA
Pwer:
2.5KW
Air consumption:
200L/Min
Pwysau:
about 1700Kg
Dimensiwn Allanol:
2440 × 1150 × 2300 (L × W × H) mm2875 mm * 1540mm * 2300 mm (L × W × H)



NA.
Enw Dyraniad
Tarddiad
Brand
1
PLC
Ffrainc
Schneider
2
Ehangu Mewnbwn
Ffrainc
Schneider
3
Ehangu Allbwn
Ffrainc
Schneider
4
Sgrin gyffwrdd
Ffrainc
Schneider
5
Troswr Amledd
Ffrainc
Schneider
6
System Servo
Ffrainc
Schneider
7
Synhwyrydd
Japan
OPTEX
8
Switsys Agosrwydd
Ffrainc
Schneider
9
Newid Pŵer
Ffrainc
Schneider
10
Switsh pwysau
Japan
SMC
11
Silindr
Taiwan
Airtac
12
Falf Solenoid
Korea
F.TEC



Manylion Cyflym


Math: Peiriant Llenwi
Cyflwr: Newydd
Cais: Diod, Cemegol, Nwyddau, Bwyd, Peiriannau a Chaledwedd, Meddygol
Math o Becynnu: Barrel, Poteli, Caniau
Deunydd Pecynnu: Gwydr, Metel, Plastig
Gradd Awtomatig: Awtomatig
Math a yrrir: Trydan
Foltedd: 380V / 50hz
Pwer: 2.5KW
Man Tarddiad: Shanghai, China (Mainland)
Enw Brand: NPACK
Dimension(L*W*H): 2440*1150*2300mm
Pwysau: 1000kg
Ardystiad: CE GMP ISO
Gwasanaeth Ôl-werthu a Ddarperir: Peirianwyr ar gael i wasanaethu peiriannau dramor
Filling Capacity: ≤2500 Bottles/hour(1L)
Filling Range: 80-1000ml
Filling Precision: (200ml) ±1%, (200ml-1000ml) ±0.5%
Applicable Round Bottle: Diameter:40-100mm Height:80-230mm
Flat / Square Bottle: Flat / Square Bottle (40-100) * (40-100) * (80-230) mm
Air consumption: 200L/Min
PLC / Sgrin gyffwrdd / Gwrthdröydd: Schneider
Silindr / falf Solenoid: FTEC
Deunydd: 316L + 304 Dur gwrthstaen
