Peiriant Llenwi Bleach Awtomatig Llawn Dur Di-staen

Hafan / Peiriannau Llenwi / Peiriant Llenwi Bleach / Peiriant Llenwi Bleach Awtomatig Llawn Dur Di-staen

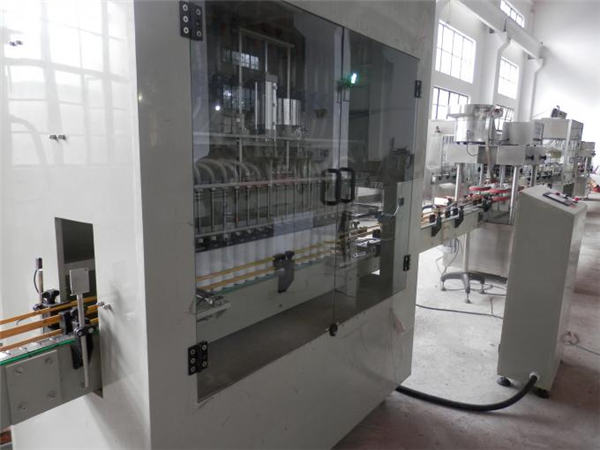

Peiriant Llenwi Bleach Awtomatig Llawn Dur Di-staen

bleach filling machine

Mae peiriant llenwi cyfres NPACK yn addas ar gyfer llenwi hufen, eli, eli, gel cawod, a chynhyrchion hylif ac ati.

Gellir defnyddio'r peiriant ar gyfer pŵer llenwi silindr traddodiadol, gall hefyd fabwysiadu modur servo fel llenwi pŵer.

O'i gymharu â'r silindr traddodiadol, mae cywirdeb llenwi moduron servo yn uwch, gall y cywirdeb gyrraedd <± 0.5%, mae ganddo nodweddion safonau hylendid uchel effeithlonrwydd uchel, manwl gywirdeb uchel.

Technical parameter about bleach filling machine


ModelCyfrol llenwiCyflymder llenwiCywirdeb llenwiCynhyrcheddPwysedd ffynhonnell aer
NPACK-5010-50mladdasadwy≤ ± 0.3%2000-3000b / h0.4-0.8MPa
NPACK--15030-150mladdasadwy≤ ± 0.3%1800-3000b / h0.4-0.8MPa
NPACK-30050-300mladdasadwy≤ ± 0.3%1800-2500b / h0.4-0.8MPa
NPACK-500100-500mladdasadwy≤ ± 0.3%1200-2000b / h0.4-0.8MPa
NPACK--1000200-1000mladdasadwy≤ ± 0.3%1000-2000b / h0.4-0.8MPa

Feature of bleach filling machine


The series of filling machine is featured by compact and reasonable structure,beautiful and decent appearance.

It adopts electric components of world’s famous brands.The main power cylinder adopts FESTO dual-action cylinder and magnetic switch,and Japan Mitsubishi PLC computer,Omron photoelectric and Germany Siemens touch screen are adopted to ensure its excellent quality and stable performances.

The machine can be conveniently maintained.It can be easily disassembled,assembled and cleaned without the need of using any tools.The adjustment is convenient.When adjusting the metering,first adjust the value to be near the metering at a wide range,then mark sure no filling is made in case of no bottle or bottle shortage.

The filling system of the machine adopts the ferrule type quick installed sanitary connector.The whole cylinder can be easily disassembled,assembled and cleaned without the need of using any tools.It is featured by simple structure design and convenient operation and maintenance.

Manylion Cyflym


Math: Peiriant Llenwi
Cyflwr: Newydd
Cais: Diod, Cemegol, Nwyddau, Bwyd, Meddygol
Math o Becynnu: Bagiau, Poteli, Cartonau, Cwdyn
Deunydd Pecynnu: Plastig, Pren
Gradd Awtomatig: Awtomatig
Math a yrrir: Trydan
Foltedd: 220V / 380V
Pwer: 3KW
Man Tarddiad: Shanghai, China (Mainland)
Enw Brand: NPACK
Dimensiwn (L * W * H): 6000 * 1300 * 2200 (mm)
Pwysau: 500kg
Ardystiad: GMP
Gwasanaeth Ôl-werthu a Ddarperir: Peirianwyr ar gael i wasanaethu peiriannau dramor
Item: bleach filling machine
Cyfrol llenwi: 10-1000ml
Cyflymder llenwi: addasadwy
manwl gywirdeb llenwi: ≤ ± 0.3
Capasiti cynhyrchu: 1000-3000bph
Pwysedd ffynhonnell aer: 0.4-0.8MPA
Swyddogaeth: Capio Llenwi Golchi Potel
Prosesu: Llenwi + stopio + capio
Deunydd: Dur Di-staen
Gwarant: Blwyddyn
