Peiriant Llenwi Hylif Potel Mêl Awtomatig Cyflenwr Tsieina

Hafan / Peiriannau Llenwi / Peiriant Llenwi Hylif Potel Mêl Awtomatig Cyflenwr Tsieina

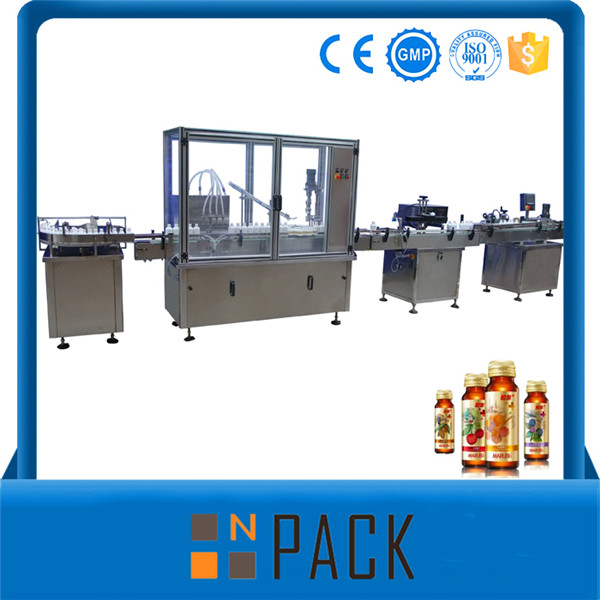

Peiriant Llenwi Hylif Potel Mêl Awtomatig Cyflenwr Tsieina

Manylebau
Peiriant Llenwi Hylif Potel Mêl Awtomatig Cyflenwr Tsieina
Cywirdeb Uchel
PLC

China Supplier Automatic Honey Bottle Liquid Filling Machine 's introduction

This filling Machine is widely used in packaging pipeline for medicine, foods, pesticides, and chemical industry and so on. it adopts Frequency cotrolled drive, and transportation exit is adjustable. so it could meet different packaging machinery pipeline request.

This filling Machine use PLC programmable control, with 5.7 inches touch-screen human-machine interface system, and use piston controlling filling material flow to met the request of kinds of measurement filling. Structure compact, used for both big and small bottle and changeable bottle. we adjust the machine instead of replacement parts when we change bottle condition. this machine adopts mainly machinery linear motion way for design.

It aim at auto-controlled by means of PLC programmable controller, kinds of induction device and air vat release, and completely meet GMP standard, simply operated. It could change different container for filling during short time so that it could reach several use with one machine.

Our Normal models


Speed for 1L

ZXG-4(four head) 12-16bottles/min

ZXG-6(six head) 18-24bottles/min

ZXG-8(eight heads) 24-32bottles/min

ZXG-10(ten heads) 30-40bottles/min

ZXG-12(twelve heads) 36-48bottles/min

technical parameters


Filling Scope250g-4000g
Cyflymder Llenwi
Measure Precision<=+/-1%
Pwer500W
foltedd380V 50HZ
Pwysedd Aer0.5Mpa
Pwysau Net300kgs

Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH)

China Supplier Automatic Honey Bottle Liquid Filling Machine 's working process

It adopts piston filling,reliability,while the material have been sucked into the cylinder,they would be pushed out through the nozzles,and the amount of the material which are filled into desired container is same with the material which are in the cylinder.

China Supplier Automatic Honey Bottle Liquid Filling Machine 's delivey term

1.Before delivery, rhaid profi a llunio'r peiriant (gyda'r deunydd pacio neu hebddo), hefyd fideo

2. Ar ôl anfon llun a fideo, gofynnir i'r taliad balans ei dalu, bydd ein ffatri'n dosbarthu peiriant ar yr eiliadau y bydd y taliad llawn yn cyrraedd ein cyfrif.

Mae croeso cynnes i 3.Buyer archwilio gweithgynhyrchu peiriant.

China Supplier Automatic Honey Bottle Liquid Filling Machine 's technical support

1.sales person online service from 8:00 am to 10:00 pm

Gellir trefnu 2.engineer ar gyfer ail-addasu a gosod wrth ffactor y prynwr, ond dylai'r prynwr eni ffioedd cymharol

China Supplier Automatic Honey Bottle Liquid Filling Machine 's cooperation brand

Schneider, Siemens, Mitsubishi, AirTAC, SICK, Omron, Weinview ac ati.



Manylion Cyflym


Math: Peiriant Llenwi
Cyflwr: Newydd
Application: Food, Commodity, Medical, Chemical, Machinery & Hardware
Math o Becynnu: Caniau, Poteli
Deunydd Pecynnu: Plastig, Metel, Gwydr
Gradd Awtomatig: Awtomatig
Math a yrrir: Trydan
Foltedd: 220 / 380V
Pwer: 1KW
Man Tarddiad: Shanghai, China (Mainland)
Enw Brand: NPACK
Dimensiwn (L * W * H): 1920 * 1000 * 1600 mm
Weight: 350 kg
Ardystiad: CE
Gwasanaeth Ôl-werthu a Ddarperir: Peirianwyr ar gael i wasanaethu peiriannau dramor
Cyfrol Llenwi: 3-70ml 10-120ml 25-250ml 50-500ml 0.1-1L 0.2-2L 0.4-4L 0.5-5L
Llenwi Manwl: +/- 1%
Capasiti Llenwi: 10-80 Potel / Munud
Pen Falf Llenwi: Pen Lluosog
Ansawdd: Garanteed
Pris: Cystadleuol
Perfformiad: Ardderchog
Gwasanaeth: Oes
Strwythur: Llinol
