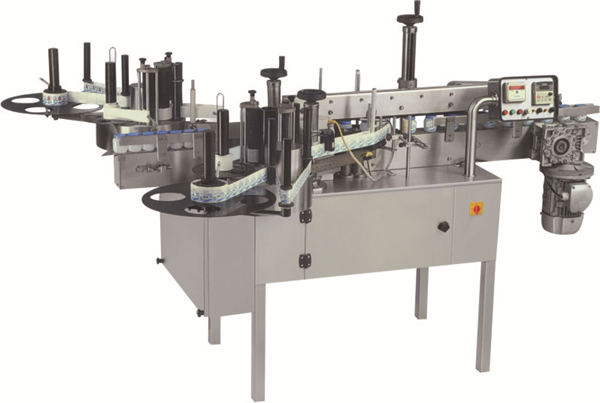

Peiriant Labelu Ochr Ddwbl Botel Fflat Awtomatig

Hafan / Peiriannau Labelu / Peiriant Labelu ochr ddwbl / Peiriant Labelu Ochr Ddwbl Botel Fflat Awtomatig

Peiriant Labelu Ochr Ddwbl Botel Fflat Awtomatig

Manylebau

1 Automatic bottle Sides Labeling Machine
2 labeling on two sides
3 for any shape of bottle or box
4 Touch Screen Control

Paramedr Technegol


Pwysau500kgs
Dimensiynau2800 x 1500 x 1600mm
PwerAV220, 50 or 60Hz, max 2.5KW (depends on customer's requirement)
Control SystemPLC and Touch Screen Controller
Maint y Botel15 to 150mm in Length; 10 to 100mm in Width; 40 to 350mm in Height
Maint Label15 to 180mm in Width; 10 to 250mm in length
Label Reel Inner Diameter76mm
Label Reel Outer Diameterwithin 360mm
Cyflymder Labelu100 to 250pcs per minute (depend on the label length and bottle size)
Optional EquipmentCode Printer

Main Configuration


N0.EnwBrand
1System reoli PLCMitsubushi (Japan)
2Stepper motorKINCO (Yr Almaen)
3gyrrwrKINCO (Yr Almaen)
4Newidwyr amleddSchneider(France)
5FfotoelectricityKeyence (Japan)
6labeli synhwyrydd ffotodrydanolFOTEK (Taiwan)
7Touches screenSimens (Germany)
8Conveyor MotorZAGA (Japan)
9BearingsNSK
10Deunydd dur gwrthstaen304SS
11Aluminium alloySurface anode gush arenaceous technology

Nodweddion


1) This labeler is full- automatic and can label on any shape bottles: single side labeling and double sides.

2) Widely used in medicine, daily chemicals and cosmetic, food and beverages industries.

3) Equipped with PLC control system and Touch Screen Control. The machine automatically stop running when no label and no bottles.

4) Photoelectric detecting make labeling in high speed and high accuracy.

5) Have a very good labeling effect, no crumple and no bubble.

6) Used high class of stainless steel and aluminum alloy. The whole machine structure has high strength and good appearance.

TS 920 automatic flat bottle double sides labeling machine

Manylion Cyflym


Math: Peiriant Labelu

Cyflwr: Newydd

Application:Food, Beverage, Commodity, Medical, Chemical

Math o Becynnu: Poteli

Packaging Material:Plastic, Paper, Metal, Glass, Wood

Gradd Awtomatig: Awtomatig

Math a yrrir: Trydan

Foltedd: 220V

Power:max 2.5KW

Man Tarddiad: Shanghai, China (Mainland)

Enw Brand: NPACK

Dimension(L*W*H):2800 x 1500 x 1600mm

Weight:500kgs

After-sales Service Provided:Overseas third-party support av....
