Gludo a Pheiriant Llenwi Hylif 50-500ml ar gyfer Gludo Dannedd Cosmetig Siampŵ Hufen

Hafan / Peiriannau Llenwi / Gludo a Pheiriant Llenwi Hylif 50-500ml ar gyfer Gludo Dannedd Cosmetig Siampŵ Hufen

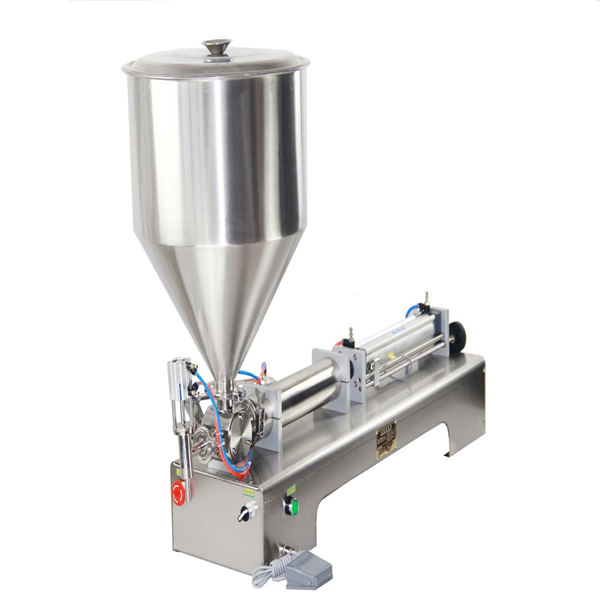

50-500ml Paste and Liquid Filling Machine for cream shampoo cosmetic tooth paste

The 50-500ml Paste and Liquid Filling Machine for cream shampoo cosmetic tooth paste suits for foods, daily chemicals, agrochemicals, medicine and other special chemicals. It is an ideal device for high viscosity of liquid and paste filling, filling driven by pneumatic, high filling precision.

The pneumatic part adopts pneumatic components AIRTAC, with double headshigh accuracy.

The number of filling nozzles can be added according to your requirement. It can add some additional functions as your requirement, such as explosion-proof type, overflow filling system, etc.

1. The machine has been redesigned on the base of the same product at abroad.

2. It add some additional functions which made the machine easy and convenient to operate.

3. There is a table which can be ordered according to your requirement.

Egwyddor Llenwi


The machine adopts piston filling, it measures and delivers the product to the container by the action of a single piston to each filling head. On the intake stroke, the piston draws the product from the supply hopper through the upper check-valve, and into the cylinder or the piston chamber. On the down stroke, the product flow through the lower check-valve, chamber through the valve and into the container.

Disgrifiad o'r Cynnyrch


ModelGFC(double  heads)GFC(single head)GFD(double heads)GFD(single head)
Trachywiredd± 1%
Pwysedd Aer0.4Mpa
Cyflymder llenwi2-60Bottles/min1-30Bottles/min2-60Bottle/min1-30Bottles/min
Cyfrol Llenwi3-70ml  10-120ml  25ml-250ml  50ml-500ml  0.1-1L   0.2-2L  0.4-4L  0.5-5L



Manylion Cyflym


Math: Peiriant Llenwi
Cyflwr: Newydd
Cais: Cemegol, Bwyd, Meddygol
Packaging Type: Barrel, Bottles, Cans, Case
Packaging Material: Glass, Metal, Wood
Gradd Awtomatig: Lled-Awtomatig
Math a yrrir: Niwmatig
Voltage: 220V/50-60Hz
Pwer: 10W
Man Tarddiad: Shanghai, China (Mainland)
Enw Brand: NPACK
Dimensiwn (L * W * H): Wedi'i addasu
Weight: Customized
Ardystiad: CE
Gwasanaeth Ôl-werthu a Ddarperir: Peirianwyr ar gael i wasanaethu peiriannau dramor
Product name: 50-500ml Paste and Liquid Filling Machine for cream shampoo
Filling Precision:: Up to 99%
Ffrâm: Dur Di-staen
Number of Filling Heads: Double and single are available
